Many of blowers are so small and quiet, that you never notice them unless you’re on the lookout for them.

So let’s look at how blowers compress air :

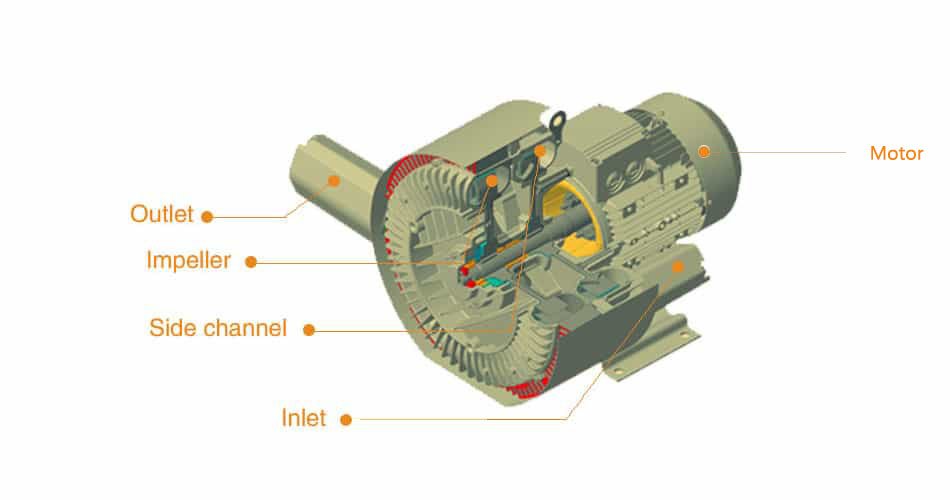

blower,Biogas,side channel blower,pump,vacuum,dereike,ring blower,typhoon blower,dust collect blower,goorui,pump,Gardnerdenver,buschvacuum,elektrorThe gas is taken in through the inlet (1).
As it enters the side channel (2), the rotating impeller (3) imparts velocity to the gas in the direction of rotation.
Centrifugal force in the impeller blades accelerates the gas outward and the pressure increases.
Every rotation adds kinetic energy, resulting in further increase of pressure along the side channel.

The side channel narrows at the rotor, sweeping the gas off the impeller blades and discharging it through the outlet silencer (4) where it exits the pump.

In this case, the impeller is just a fancy fan. It spins really fast inside the housing and creates pressure or vacuum, depending on which side you hook it up to.  Actually, every compressor creates both pressure and vacuum, but side-channel is one of the few technologies where you can use the same pump for both with no modification.  For instance, a piston compressor creates a vacuum on its inlet, but you can’t just hook a pipe up to it and use it in your process.

As we mentioned before, a dynamic compressor uses a rotating element to accelerate the air and then forces it into a smaller space.  I like to think of it as a traffic jam on the interstate that happened because some lanes are blocked off, and the cars are the air molecules. The cars are jammed tighter together because of the lane blockage.  More cars jammed together in a tighter area is the higher pressure.

Unlike a bad day on traffic jam, however, side-channel technology is very useful.

Here are some applications where you’ll find side-channel blowers:

Central vacuum systems Packaging industry
Degasification of food Assembling and folding packaging materials
Dental vacuum Vacuum packaging
Drying out buildings Plastics industry
Filling bags / bottles / silos Contact free plastic film redirection
Fishpond ventilation Cooling and drying extruder products
Gas analysis EPS foaming
Industrial vacuum cleaners Granulate conveying
Laser printers Plastic welding
Pneumatic conveying Thermoforming
Swimming pool technology / jacuzzis Printing and paper industry
Letter sorting / enveloping Textile industry
Lifting and holding parts using vacuum suction Ventilation of sewage treatment plants
Soil remediation

Side-channel blowers and vacuum pumps have a lot of benefits:

1.  Very little or no maintenance
2.  100% duty cycle
3.  If sized correctly, they last a very long time.
4.  Very clean, no oil or lubricants at all in the pump
5.  The same pump can be used for pressure or vacuum.
6.  They are usually quieter than other technologies that offer the same pressure and flow

A good example is the DHB series.  It will run 40,000 hours flat out before you need to do any maintenance.  There are 8760 hours in a year, so it could run 4-1/2 years non-stop without you needing to touch it.  Of course, your usual work week for a compressor like this is 40-80 hours, so that’s between 9 and 19 years before any maintenance or parts are needed.

Of course, many of you haven’t heard of these before, so there must be some drawbacks.  Here they are:

1.  The range of vacuum and pressure they can supply is very small.  The most pressure out of the ones I’ve seen is 15 psi, and that’s a special 3-stage version.  Normally they operate between 3 and 10 psi.  That’s not a lot of pressure.  The same is true for using it to create a vacuum.  They don’t create a deep vacuum.  This limits their use to special applications that need very little pressure or a very light vacuum.

2.  They are very tricky to size properly.  Most of these blowers are used by OEM manufacturers as part of an engineered package.  The sizing was done by the engineers at the factory.  Unless you are extremely knowledgeable about compressed air or vacuum, you’re not going to pick one out of a brochure and put it in your shop.  Well, actually you can, but the odds of you choosing the wrong one are high.

Those are really the only cons, and they aren’t bad points – you shouldn’t use any technology outside of the limitations it was designed for.  If you need to supply a continuous flow of under 10 psi, side channel blowers are usually the way to go.  However, you should have a professional to help you pick one out.  Once sized correctly, side channel compressors will give you years, maybe decades, of  worry-free service.
