Surface Treatment of Dereike Air Blower:Anodic Oxidation

2021-07-26 14:41

Surface Treatment of Dereike Air Blower:Anodic Oxidation

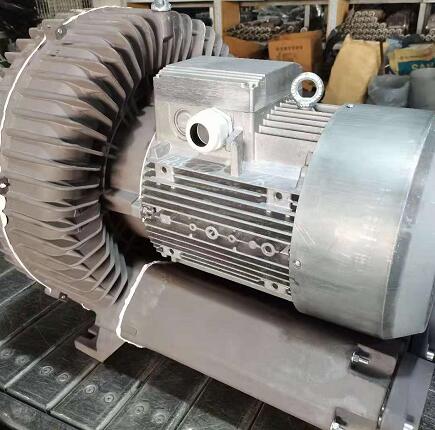

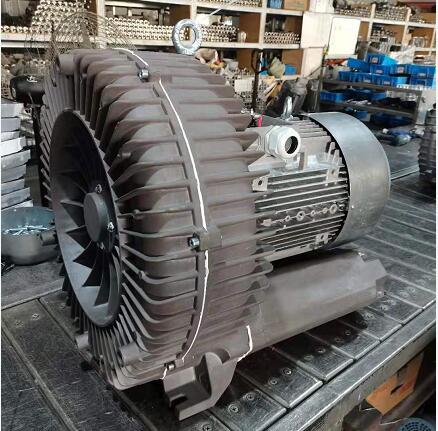

There are two types of surface treatment on the Aluminium alloy blowers, one is Teflon coating,
and the other one is anodic oxidation.


In order to overcome the defects of aluminum alloy surface hardness and wear resistance, expand the scope of application
and prolong the service life , the Anodizing technology is the most widely used and the most successful.



The anodic oxidation of aluminum is an electrolytic oxidation process. In this process, the surface of aluminum and aluminum alloy is usually transformed into a layer of oxide film, which has protective, decorative and some other functional characteristics.
From this definition, the anodizing of aluminum only includes the process of forming anodic oxide film.

An oxide film is formed on the surface of metal or alloy parts by electrolysis. Metal oxide film changes the surface state and properties, such as surface coloring, improving corrosion resistance, enhancing wear resistance and hardness, protecting metal surface and so on.

For example, aluminum anodizing, aluminum and its alloy are placed in the corresponding electrolyte (such as sulfuric acid, chromic acid, oxalic acid, etc.) as the anode for electrolysis under specific conditions and applied current. Anodized aluminum or its alloy forms a thin layer of alumina on the surface, with a thickness of 5 ~ 30 microns, and the hard anodized film can reach 25 ~ 150 microns. The anodized aluminum or its alloy improves its hardness and wear resistance, up to 250 ~ 500 kg / mm2, good heat resistance,

the melting point of hard anodized film is up to 2320k, excellent insulation, breakdown voltage resistance is up to 2000V, and enhances the corrosion resistance ω= 0.03 NaCl salt spray does not corrode after thousands of hours. The thin oxide film has a large number of micropores, which can adsorb various lubricants and is suitable for manufacturing engine cylinders or other wear-resistant parts;



The membrane has strong microporous adsorption capacity and can be colored into various beautiful and gorgeous colors. Non ferrous metals or their alloys (such as aluminum, magnesium and their alloys) can be anodized.
This method is widely used in mechanical parts, aircraft and automobile parts, precision instruments and radio equipment, daily necessities and architectural decoration

Generally speaking, the anode uses aluminum or aluminum alloy as the anode, and the cathode selects the lead plate.
The aluminum and lead plate are put together in the aqueous solution, which contains sulfuric acid, oxalic acid, chromic acid, etc. for electrolysis to form an oxide film on the surface of the aluminum and lead plate. Among these acids, the most widely used is anodic oxidation with sulfuric acid.
