Working principle of single phase PCB equipment-side channel blower

2020-09-16 15:58
Working principle of single phase PCB equipment - Side Channel Blower
Industrial suction fan, feed fan and dust suction fan use the impeller of side channel blower to run at high speed to produce strong suction and pressure to form local vacuum inside the dust collector: 1. Under the action of suction and pressure, the air is discharged at high speed, and the air in the dust collection part at the front end of the side channel blower constantly replenishes the air in the blower, resulting in instantaneous vacuum inside the dust collector and the outside . The negative pressure brush, long pipe, hose, elbow, hose joint enter into the filter bag, dust and other debris stay in the filter bag, after the air is purified by the filter, the tail outlet of the organism is discharged!

2. The
side channel blower in the industrial vacuum cleaner uses suction to play the role of suction and vacuum, so that the air forms convection, dust and other debris are collected through the pipe.

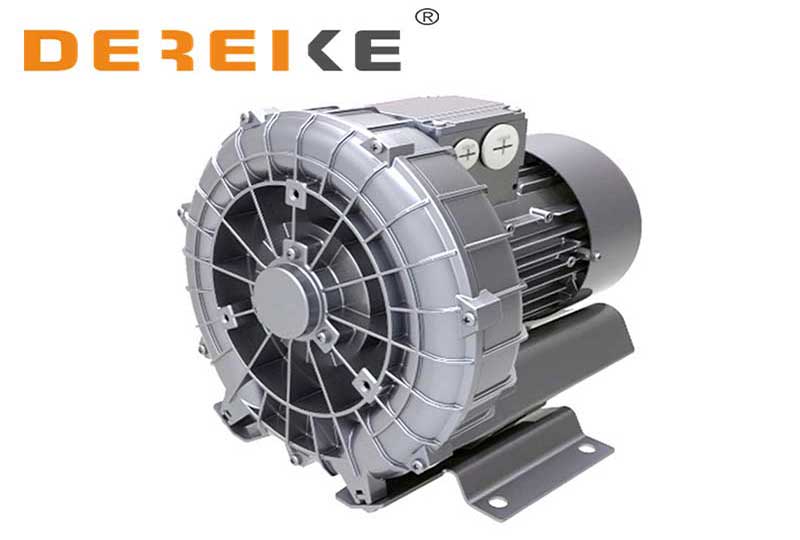

side channel blower, ring blower
Performance characteristics of side channel blower for single phase PCB equipment
1. Super static sound type, no noise: the motor runs directly, and by adding the integrated pin sound device, the appearance of side channel blowernoise is improved, so as to achieve the effect of silence.
2. High reliability. The machine can still operate safely when the service condition changes. In addition to the impeller, the high pressure blower has no other action, so it is highly reliable and almost maintenance free. It has the following advantages: high compression ratio; low operating temperature of bearing; long life of lubricating grease; maintenance free.
3. It is easy to install and equipped. It can be installed and used at any time for compressed air or vacuum. It can also be installed in horizontal or vertical direction.
4. Oil free and pollution-free. When the impeller rotates, it does not contact with any part of the parts and is free of lubrication, so it can guarantee 100% pollution-free.
PCB equipment special side channel blower adopts one-time die-casting molding, beautiful appearance, combined with automobile paint, which is comparable with imported fan. However, we use the price of 1 / 3 of the imported blower, faster delivery speed and more perfect after-sales service, to meet your quality requirements. No doubt, we are more cost-effective than them.
