Side channel blower junction box function

2023-07-04 08:51

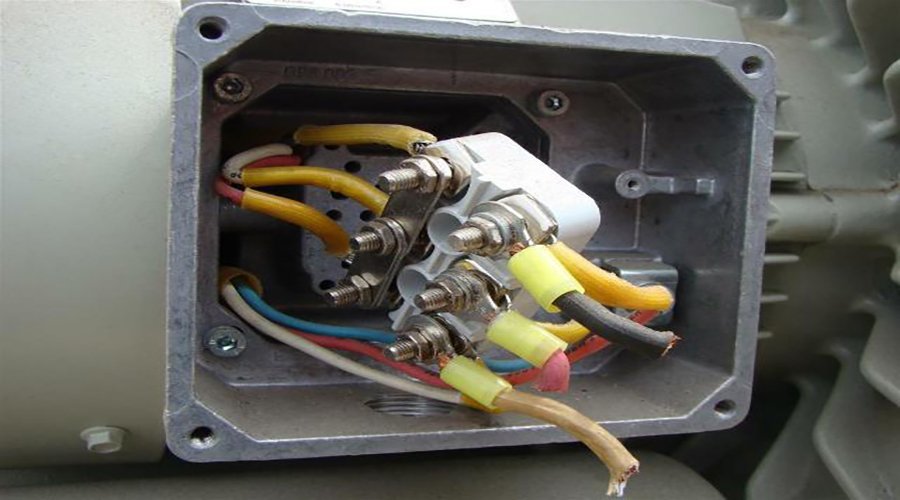

The junction box of a side channel blower serves as an important component for electrical connections and protection of electrical components. The junction box is typically located on the exterior of the blower and facilitates power supply, control signal transmission, and connection to other devices.
Here are some common features and functions of the junction box in a side channel blower:
1.Power input: The junction box usually has terminals or sockets for power input, enabling the blower to receive power supply from the main power line.
2.Control signal connection: The junction box may include terminals for connecting control signals such as start-stop signals, speed control signals, etc. These signals can originate from external control systems or sensors and are transmitted through the junction box to operate and control the blower.
3.Protective devices: The junction box often contains fuses, circuit breakers, or overload protection devices to safeguard electrical components. These protective devices prevent damage to the blower and electrical system in the event of overcurrent or overload conditions.
4.Grounding connection: The junction box may also feature terminals for grounding, ensuring electrical safety and preventing static buildup.
5.Terminal blocks or connectors: The junction box typically provides terminal blocks or connectors for connecting cables and wires. These terminal blocks or connectors are used to connect the blower's power lines, control wires, and other electrical connections.
In summary, the junction box plays a vital role in a side channel blower, offering electrical connections, protection, and control functions. Its specific design and functionality may vary depending on the manufacturer and model. Therefore, it is advisable to consult the blower's operating manual or contact the manufacturer for accurate information.
