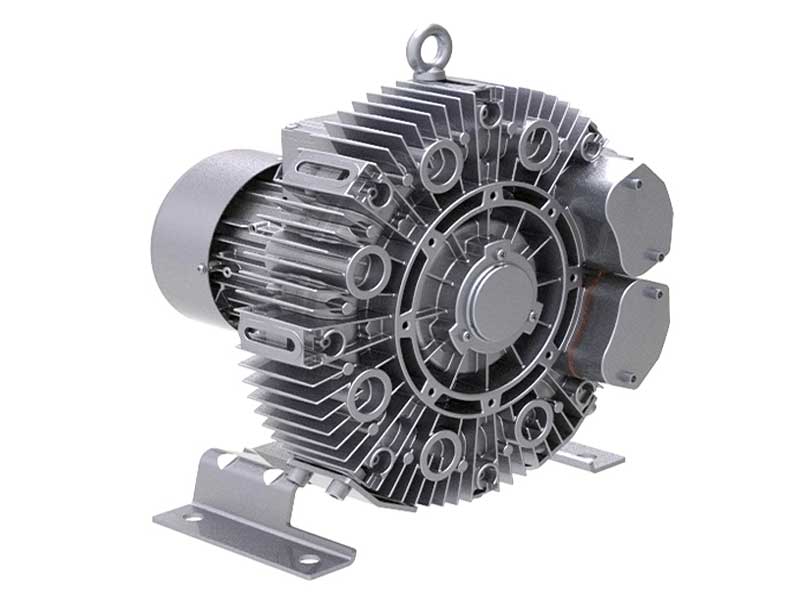

DHBT 610B 3D3 high pressure blower

General features:
 ●Max Air flow to 2480m3/h;
 ●Rated vacuum to -730mbar;
 ●Rated pressure to 1040mbar;
 ●IE2/IE3 high efficiency is available;
 ●With Thermal protection (PTC);
 ●100% Oil free, Easy installation, Maintance free;
 ●CE, ROHS,UL,ATEX certification approvaled;
 ●Broadband frequency and voltage used worldwide;
 ●High quality bearing used to Anti-high temperature to 180℃-200℃;
Technical parameters units DHBT 610B 3D3
Maximum Flow m3/h 165/195
Rated Vacuum mbar -340/-380
Rated Pressure  mbar 480/530
Frequency Hz 50/60
Voltage V 200-240△/345-415  |  220-275△/380-480
Current Consumption A 13△/7.5Y  |  14.2△/8.2Y
Power  kW 3.3/3.8
RPM min-1 2800
Weight Kg 35
Noise  dB (A) 65/71

CHARACTERISTIC PARAMETER:

The following Pressure-flow performance curve is measured under the condition of suction of 15 °C air and exhaust pressure 1013mbar. The allowable difference is±10%. When the inlet air and ambient temperature do not exceed 25 °C, the following diagram can still be achieved.;DHBT 610B 3D3 high pressure blower

DHBT 610B 3D3 turbo blower INSTALLATION CHART:

DHBT 610B 3D3 high pressure blower
DHBT 610B 3D3 high pressure blower
DHBT 610B 3D3 high pressure blower
DHBT 610B 3D3 high pressure blower
DHBT 610B 3D3 high pressure blower



DHBT 610B 3D3 high pressure blower
