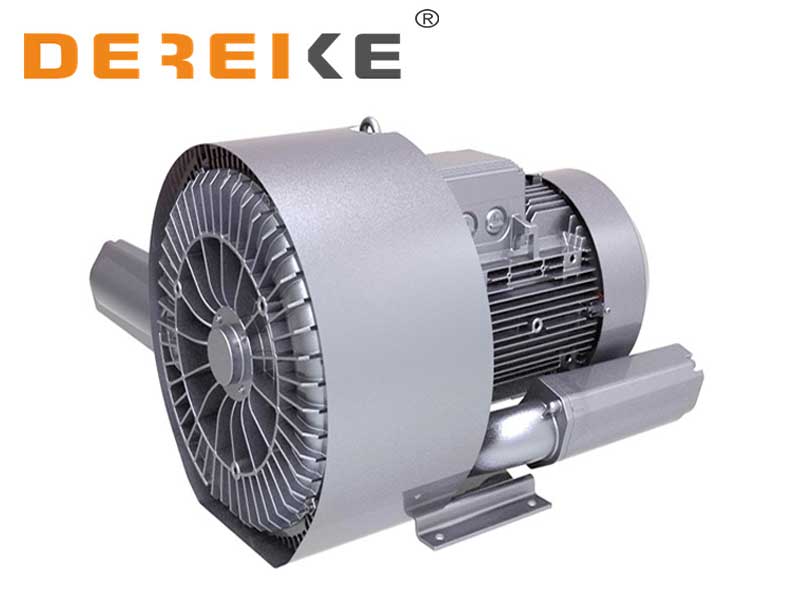

model:2BH19407BH37
Technical parameters | Units | DHB 940C 020 |
---|---|---|
Maximum Flow | m3/h | 1940/2310 |
Rated Vacuum | mbar | -220/-160 |
Rated Pressure | mbar | 200/130 |
Frequency | Hz | 50/60 |
Voltage | V | △345-415/Y600-720 | 380-480△/660-720Y |
Current Consumption | A | 40.0△/23.0Y | 42.0△/24.2Y |
Power | kW | 20.0/23.0 |
RPM | min-1 | 2800/3600 |
Weight | Kg | 212 |
Noise | dB (A) | 75/84 |
The following Pressure-flow performance curve is measured under the condition of suction of 15 °C air and exhaust pressure 1013mbar. The allowable difference is±10%. When the inlet air and ambient temperature do not exceed 25 °C, the following diagram can still be achieved.;
