2BH16007AH16

Technical parameters Units DHB 710B 2D2 Maximum Flow m 3 /h 318/376 Rated Vacuum mbar -190 Rated Pressure mbar 190 Frequency Hz 50/60 Voltage V △200-240/Y345-415 | 220-275△/380-480 Current Consumption A 9.7△/5.6Y | 10.3△6.0Y Power kW 2.2/2.55

General features:
 ●Max Air flow to 2480m3/h;
 ●Rated vacuum to -730mbar;
 ●Rated pressure to 1040mbar;
 ●IE2/IE3 high efficiency is available;
 ●With Thermal protection (PTC);
 ●100% Oil free, Easy installation, Maintance free;
 ●CE, ROHS,UL,ATEX certification approvaled;
 ●Broadband frequency and voltage used worldwide;
 ●High quality bearing used to Anti-high temperature to 180℃-200℃;

CHARACTERISTIC PARAMETER:

The following Pressure-flow performance curve is measured under the condition of suction of 15 °C air and exhaust pressure 1013mbar. The allowable difference is±10%. When the inlet air and ambient temperature do not exceed 25 °C, the following diagram can still be achieved.;

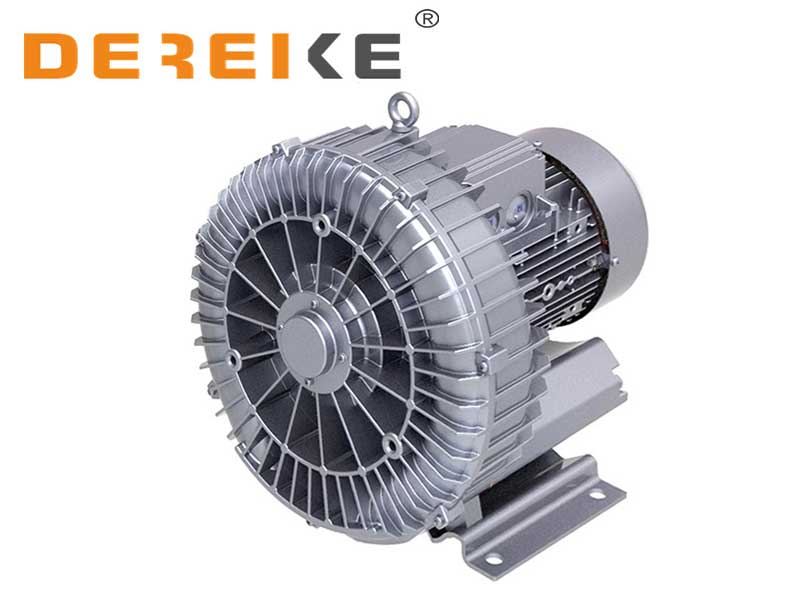

DHB 710B 2D2 ring blower INSTALLATION CHART:


blower application
Packaging process
certificate
Fan Features



dereike
Dereike has 15 side channel blower production lines, with an average monthly output of 5W.
It adopts advanced production equipment such as CNC, laser machine, three coordinate detector, atomization tester and other detection equipment.
1. Professional:Excellent technical skills,and professional knowlege on products and applications;
2. In time :Respond quickly,in case of failure to repair,provide solutions within 24 hours;
3. Task: Dereike promises 18 months free service warranty opportunity as well as a life time upkeep;
